Extrusion Welder Machine Instruction:
This product is with two major components,preheating raw material’s hot air part and welding rod’s extrusion part.
Hot air part with adjustable temperature controller to heat automatically,and extrusion part with independent thermostatic heating control system to send hot air independently, It is easy to adjust extrusion speed and use screw extruding for powerful extrusion pressure.
Using 220v power supply uniformly to weld plastic sheets,tube and other thermoplastic products,especially for both ends
of large diameter hollow wall pipe,producing pipe and repairing pipe and so on.
Available welding materials: thermoplastic HDPE, PP, PVDF, especially PE .
Extrusion Welder Machine Specification:
| Voltage: | 220V |
| Frequency: | 50/60HZ |
| Hot Air Power: | 3400w |
| Wind Temperature: | 20-600℃ |
| Heating Temperature When Extrudng: | 200-380℃ |
| Extruding Volume: | 2.5kg/h |
| Diametere of Welding Rod: | Φ3.0mm-4.0mm |
| Weight: | 5 kg |
| Usage: | PVC Tarpaulin Welding Extruder |
| Welding thickness: | 1-10mm |
Extrusion Welder Machine Features:
Imported hot air welding torch and imported driven system, high temperature, big torque, long service life, stable performance.
Light weight, easy to handle and available to operation at different angles.
Big extrusion volume can be welded more than 10mm welding seam.
Different welding shoes can be applied to different types of welding.
It is used in the tank and pipe and is comply with Part 4 of the DVS standard (Germany Welding Association).
Package:
After-Sales Service:
We always provide high quality products and workable price for every clients and have
won the trust, enjoy a good reputation in the market.
Machine Quality Guarantee: 24 months.--If any parts broken or does not work under
normal operating, we provide them for free.
Product Tags:
|
|

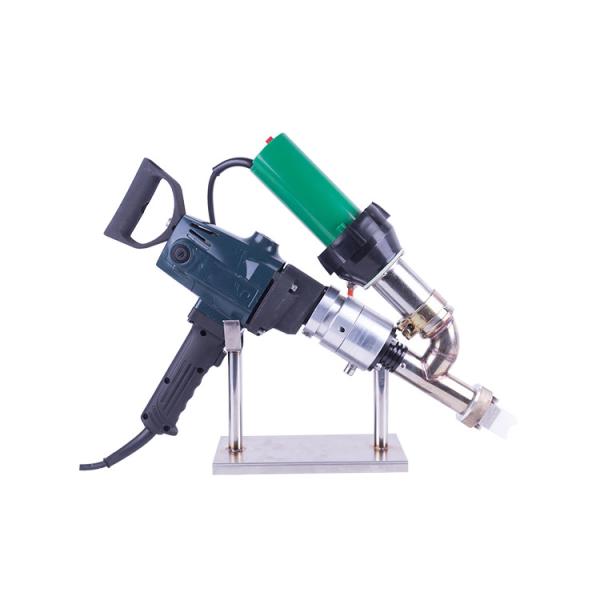

SWT-NS600F Hot Air Plastic HDPE Pipe Extrusion Welding Machine Images
|
